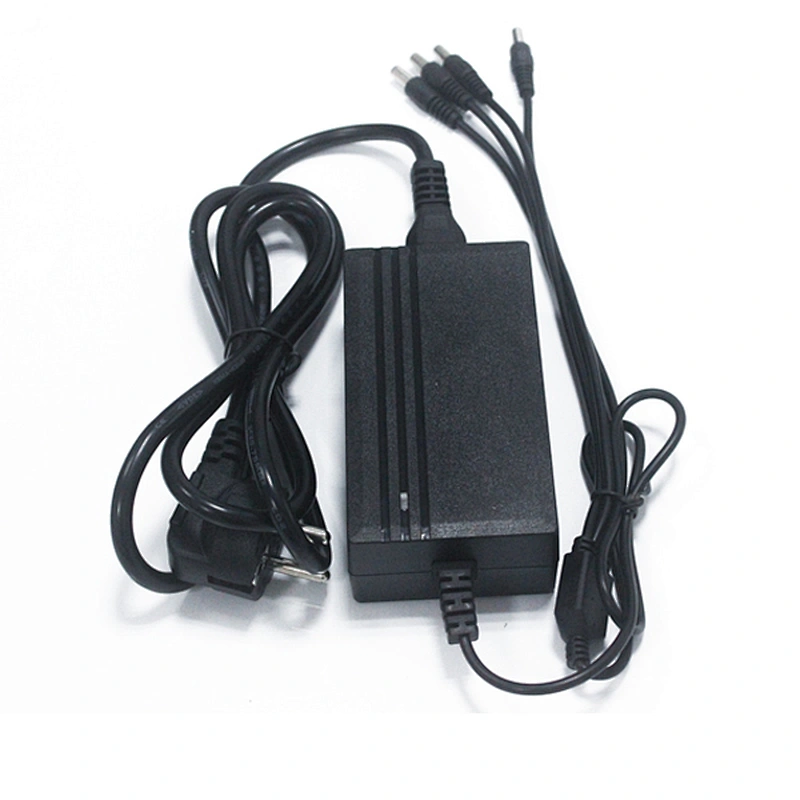

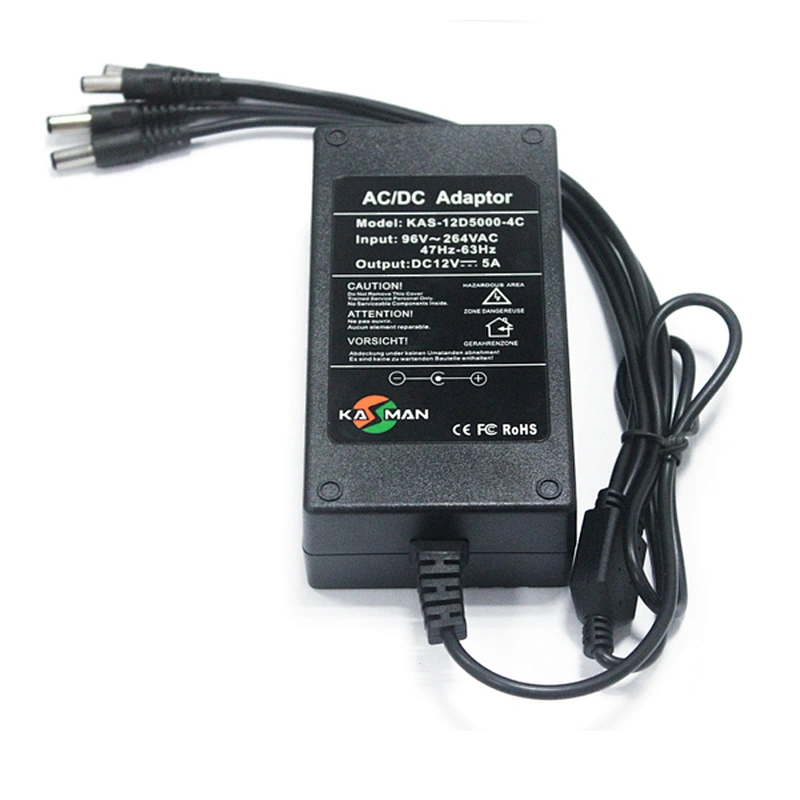

Power Adaptors- Multiple Outputs

Model NO.: KAS-12D5000-4CH-A

AC input range: 100-240V.
ICE320-C14 Class I power supply with three-pole AC plug
Protection: short circuit / overload
Fully protected plastic case
LED indicator on the front shell to show the working condition.
100% full burn-in test: full load burn-in test at low voltage AC110V, no-load burn-in test at highvoltage AC265V and repeated switch of AC power at high voltage AC265V.
Through LPS (limited power source)
Operating altitude is up to 5000 meters (note 8). High eﬃciency, long service life, high reliability.

Quantity:

Product Description

MODEL		KAS-12D5000-4CH-A
Output	DC VOLTAGE	12V
	RATED CURRENT	5A
	CURRENT RANGE	0-5A
	RATED POWER	60W
	OUTPUT CHANNELS	4-CH
	EACH OUTPUT CURRENT	1.25A
	VOLTAGE TOLERANCE（Note4）	±5.0%
	LINE REGULATION（Note3）	±0.5%
	LOAD REGULATION（Note5）	±1%
	RIPPLE&NOISE（Note2）	≤100mVp-p
	SETUP, RISE TIME	1500ms,40ms/230VAC 2200ms, 16ms/115VAC(at full load)
INPUT	VOLTAGE RANGE	100-240V
	AC CURRENT (Typ.)	1.0A/115VAC
	AC CURRENT (Typ.)	1.0A/115VAC
	FREQUENCY RANGE	50-60Hz
	EFFICIENCY (Typ.)	88%
	LEAKAGE CURRENT	<2mA/ 240VAC
	INRUSH CURRENT (Typ.)	30A/115VAC
	INRUSH CURRENT (Typ.)	50A/230VAC
PROTECTION	OVERLOAD(Note.7)	110 ~ 140% rated output power
	OVERLOAD(Note.7)	Protection type: Hiccup mode, recoversautomaticallyafter fault condition isremoved
	OVER VOLTAGE	18-21V
	OVER VOLTAGE	Protection type: Hiccup mode, recovers automatically after fault condition is removed.
ENVIRONMENT	WORKING TEMP.	-25----- 70℃(Refer to"DeratingCurve")
	WORKING HUMIDITY	20%---90% RH non-condensing
	STORAGE TEMP, HUMIDITY	-40-----85℃10%---95%RH
	TEMP. COEFFICIENT	± 0.03%/ 50℃(0 ~ 50℃)
	VIBRATION	10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
