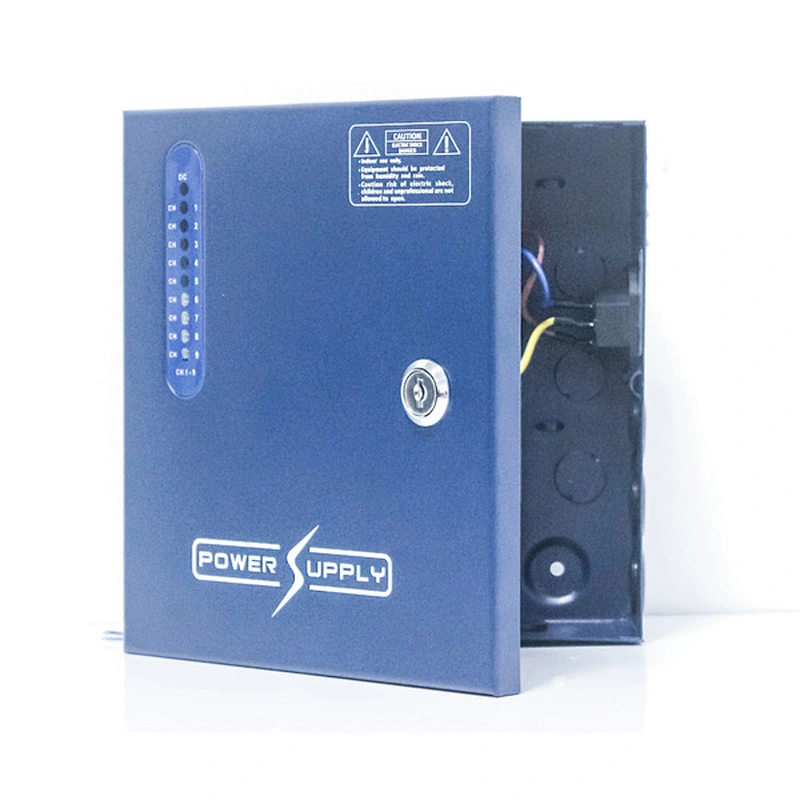

CCTV Power Supply Unit

Model NO.: KAS-DC121612

Applicable to all type of CCTV system
Metal cabinet with key lock
Power supply AC input : 100-240VAC, 50-60Hz
Power supply output : 12VDC, 16 Channel, 12A
Output voltage regulation range: 11-15V
Tube fuse /PTC fuse selectable
Operating Temp.: -20°C-70°C
With PFC function
Surge protection
Protection: over heat, over current and voltage
Safety Standards: IEC/EN/UL/CSA 60950 GB4943
Thick and well finished shell , distinguishable blue color
Dimension (L*W*H mm): 215 X 289 X 66mm

Quantity:

Product Description

MODEL		KAS-DC121612
OUTPUT	DC VOLTAGE	12V
	RATED CURRENT	12A
	CURRENT RANGE	0-12A
	RATED POWER	144W
	VOLTAGE ADJ.RANGE	11.5V-14.5V
	OUTPUT CHANNELS	16-CH
	EACH OUTPUT CURRENT	0.75A
	FUSE	PTC or Tube fuse, DC30V2A
	VOLTAGE TOLERANCE (Note3)	±1.5%
	LINE REGULATION (Note4)	±0.5%
	LOAD REGULATION (Note5)	±0.5%
	RIPPLE&NOISE (Note2)	≤150mVp-p
	SETUP, RISE TIME	1400ms, 50ms/230VAC 1400ms, 50ms/115VAC (at full load)
	HOLD UP TIME (Typ.)	16ms/230VAC 12ms/115VAC (at full load)
INPUT	VOLTAGE RANGE	100~240V
	AC CURRENT (Typ.)	1.6A/115VAC
	AC CURRENT (Typ.)	0.8A/230VAC
	FREQUENCY RANGE	50~60Hz
	EFFICIENCY (Typ.)	≥85%
	LEAKAGE CURRENT	<2mA/ 240VAC
	INRUSH CURRENT (Typ.)	40A/115VAC
	INRUSH CURRENT (Typ.)	40A/230VAC
PROTECTION	OVERLOAD(Note.7)	When the current exceeds the fuse rating (ambient 25 ℃), the fuse disconnects
		110 ~ 140% rated output power
		Protection type: Hiccup mode, recoversautomaticallyafter fault condition isremoved
	OVER VOLTAGE	18-21V
	OVER VOLTAGE	Hiccup mode, recovers automatically after fault condition is removed.
	OVER TEMPERATURE	Hiccup mode, recovers automatically after fault condition is removed
FUNCTION	FAN ON/OFF CONTROL(Typ.)	Hr1≥65℃FANON,≤55℃FANOFF
ENVIRONMENT	WORKING TEMP.	-25----- 70℃(Refer to"DeratingCurve")
	WORKING HUMIDITY	20%---90% RH non-condensing
	STORAGE TEMP, HUMIDITY	-40-----85℃10%---95%RH
	TEMP. COEFFICIENT	± 0.03%/ 50℃(0 ~ 50℃)
	VIBRATION	10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
	SAFETY STANDARDS	IEC/EN/UL/CSA 60950 GB4943
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG0.5KVAC
	EMC EMISSION	Compliance to BSMI CNS13438, EAC TP TC 020
	EMC IMMUNITY	Compliance to EAC TPTC 020
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25℃/ 70% RH
	MTBF	≥327.9K hrs min. MIL-HDBK-217F（25℃)
