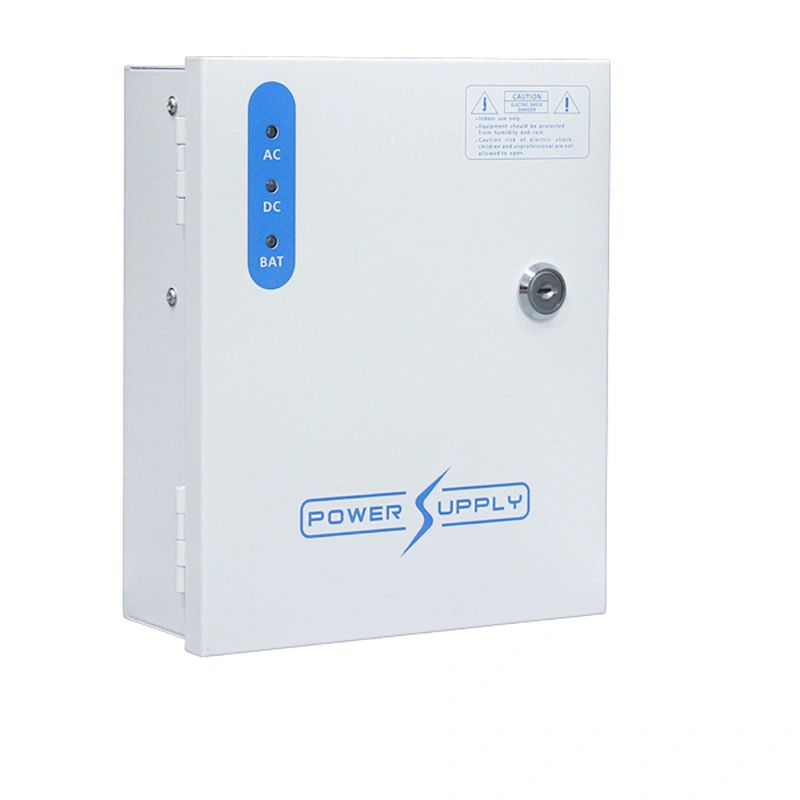

Access Control Power Supply Unit

Model NO.: KAS-DC120105B

Applicable to all type of CCTV&Access control system
Metal cabinet with key lock
Power supply AC input : 100-240VAC, 50-60Hz
Power supply output : 12VDC, 1 Channel, 5A
Output voltage regulation range: 13-15V
Tube fuse /PTC fuse selectable
Operating Temp.: -20°C-70°C
Surge protection
Protection: over heat, over current and voltage, over charging and discharging
Battery Size: 12VDC 7Ah Battery
1pcs 17-22Ah Battery
Safety Standards: IEC/EN/UL/CSA 60950 GB4943
Thick and well finished shell, standard white color
Dimension (L*W*H mm): 165 x 202 x 72 mm

Quantity:

Product Description

MODEL		KAS-DC120105B
OUTPUT	DC VOLTAGE	13.8V
	RATED CURRENT	5A
	CURRENT RANGE	0-5A
	RATED POWER	69W
	VOLTAGE ADJ.RANGE	11.5V-14.5V
	VOLTAGE TOLERANCE	±1.5%
	LINE REGULATION	±0.5%
	LOAD REGULATION	±0.5%
	RIPPLE&NOISE（Note2）	≤150mVp-p
	SETUP, RISE TIME	1500ms, 50ms/230VAC 1500ms, 50ms/115VAC(at full load)
	HOLD UP TIME (Typ.)	16ms/230VAC 12ms/115VAC(at full load)
INPUT	VOLTAGE RANGE	100-240VAC
	AC CURRENT (Typ.)	1.1A/115VAC
	AC CURRENT (Typ.)	0.6A/230VAC
	FREQUENCY RANGE	50-60Hz
	EFFICIENCY (Typ.)	84%
	LEAKAGE CURRENT	<2mA/ 240VAC
	INRUSH CURRENT (Typ.)	30A/230VAC
	INRUSH CURRENT (Typ.)	30A/115VAC
PROTECTION	OVERLOAD(Note.7)	When the current exceeds the fuse rating (ambient 25 ℃), the fuse disconnects
		110 ~ 140% rated output power
		Protection type: Hiccup mode, recoversautomaticallyafter fault condition isremoved
	OVER VOLTAGE	18-21V
	OVER VOLTAGE	Hiccup mode, recovers automatically after fault condition is removed.
	OVER TEMPERATURE	Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT	WORKING TEMP.	-25----- 70℃(Refer to"DeratingCurve")
	WORKING HUMIDITY	20%---90% RH non-condensing
	STORAGE TEMP, HUMIDITY	-40-----85℃10%---95%RH
	TEMP. COEFFICIENT	± 0.03%/ 50℃(0 ~ 50℃)
	VIBRATION	10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
	SAFETY STANDARDS	IEC/EN/UL/CSA 60950 GB4943
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG0.5KVAC
	EMC EMISSION	Compliance to BSMI CNS13438, EAC TP TC 020
	EMC IMMUNITY	Compliance to EAC TPTC 020
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25℃/ 70% RH
	MTBF	≥327.9K hrs min. MIL-HDBK-217F（25℃)
