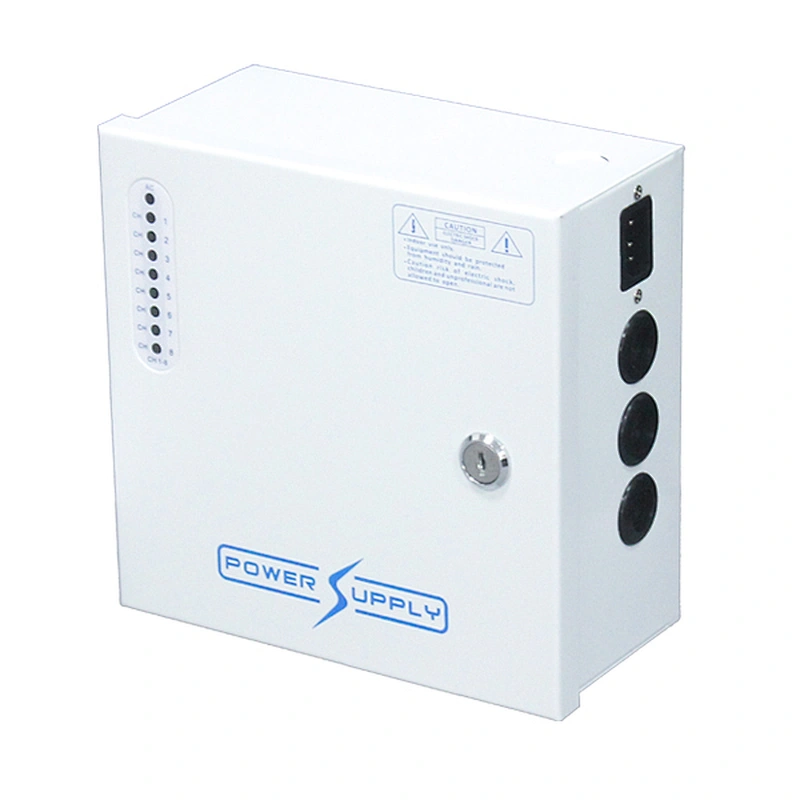

24VAC Power Supply

Model NO.: KAS-AC240808

Applicable to all type of CCTV&Access control system

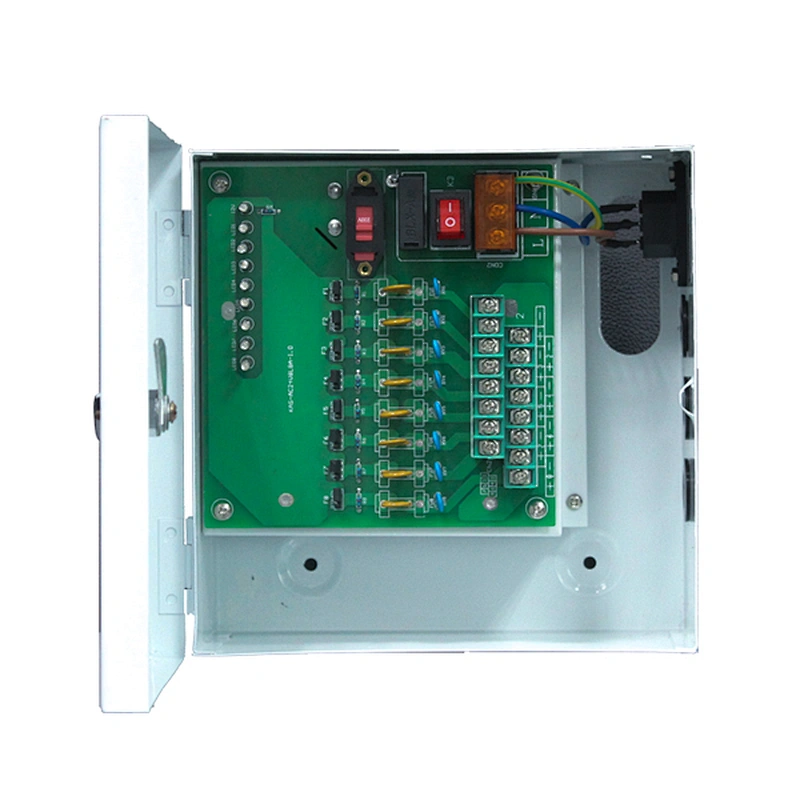

Metal cabinet with key lock
Power supply AC input : 110/220VAC, 50/60Hz
Power supply output : 24VAC, 8 Channel, 8A
Output voltage regulation range: 24-26V
Tube fuse /PTC fuse selectable
Operating Temp.: -20°C-70°C
Surge protection
Protection: over heat, over current and voltage
Safety Standards: IEC/EN/UL/CSA 60950 GB4943
Thick and well finished shell, standard white color

Quantity:

Product Description

MODEL		KAS-AC240808
OUTPUT	DC VOLTAGE	24V
	RATED CURRENT	8A
	CURRENT RANGE	0-8A
	RATED POWER	192VA
	OUTPUT CHANNELS	8-CH
	EACH OUTPUT CURRENT	1A
	FUSE	PTCfuse，DC72V2.5A
	VOLTAGE RANGE	90-132VAC/180-264VAC（AC on/off switch）
	AC CURRENT (Typ.)	1.8A/110VAC
	AC CURRENT (Typ.)	0.9A/220VAC
	FREQUENCY RANGE	50/60Hz
	EFFICIENCY (Typ.)	92%
	LEAKAGE CURRENT	<2mA/ 240VAC
PROTECTION	OVERLOAD(Note.7)	When the current exceeds the fuse rating (ambient 25 ℃), the fuse disconnects
PROTECTION	OVERLOAD(Note.7)	Protection type: Hiccup mode, recoversautomaticallyafter fault condition isremoved
ENVIRONMENT	WORKING TEMP.	-25----- 70℃(Refer to"DeratingCurve")
	WORKING HUMIDITY	20%---90% RH non-condensing
	STORAGE TEMP, HUMIDITY	-40-----85℃10%---95%RH
	TEMP. COEFFICIENT	± 0.03%/ 50℃(0 ~ 50℃)
	VIBRATION	10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY	SAFETY STANDARDS	IEC/EN/UL/CSA 60950 GB4943
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG0.5KVAC
	EMC EMISSION	Compliance to BSMI CNS13438, EAC TP TC 020
	EMC IMMUNITY	Compliance to EAC TPTC 020
	ISOLATION RESISTANCE	I/P-O/P,I/P-FG, O/P-FG:100M Ohms/500VDC / 25℃/ 70% RH

Send Message

Related Products

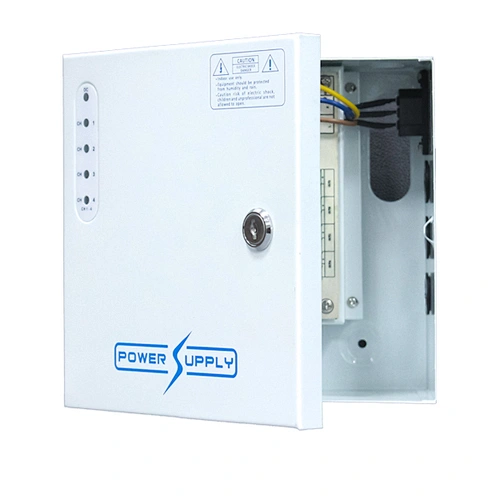

24VAC Power Supply

Model NO. KAS-AC240404

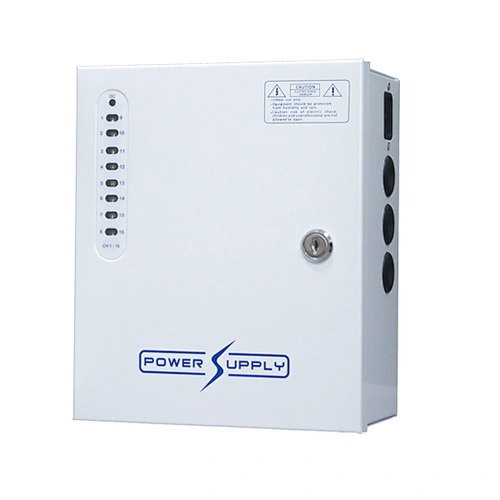

24VAC Power Supply
